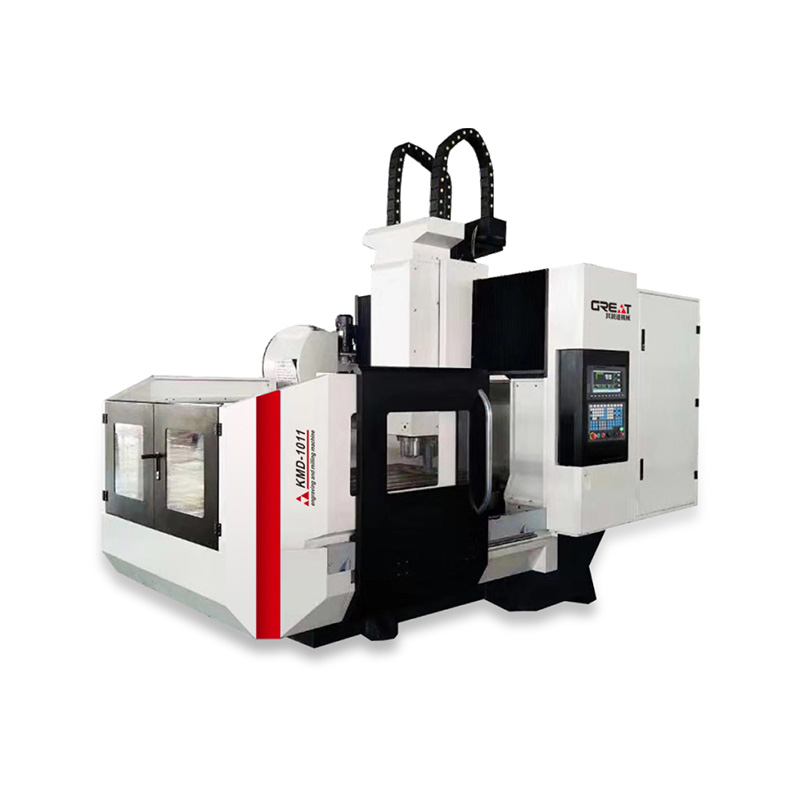

Engraving and Milling Machining Center

Engraving and Milling Machining Center

Machine Characteristics:
The machine body is made of high grade resin sand castings and is artificially aged to eliminate internal stress and prevent deformation of the machine. The main functional components are made of well-known manufacturers or imported brands, such as: Taiwan ball screw, linear guide, Japanese servo motor. The main functional components are made of well-known manufacturers or imported brands, such as: Taiwan ball screw, linear guide rail, Japanese servo motor. Stable operation. Suitable for automotive industry, home appliance industry, injection mould, hardware mould, engraving mould industry, such as: car tyre, lamp mould, copper (graphite) electrode, shoe mould, pen mould, toy mould, hardware mould, pen moulds, toy moulds, hardware moulds, hot stamping moulds, high frequency moulds, copper, iron, steel, aluminium and other types of metal, graphite, organic glass, wood and other types of Materials.
  • Engraving and Milling Machining Center
  • Engraving and Milling Machining Center
inquiry

Configuration

Technical Parameters

Projects KMD-650/KMD-650S KMD-7080/KMD-7080S KMD-80100 KMD-10110
Worktop dimensions (W x L)(mm) 500×600 800 ×600 820×1020 1000× 1000
X, Y, Z working stroke(mm) 600× 500×250 700×800 ×330 820×1000 × 350 1100× 1000×550
Max. working table load(kg) 300 400 900 1000
Distance from spindle end to table surface(mm) 100-350 100-430 140-390 50-550
Spindle taper ER25/ER32 ER25/ER32 ER32 BT40
Spindle speed(rpmImin) 18000/24000 18000/24000 18000 15000
Spindle power(KW) 5.5 7.5 7.5 7.5
XYZ axis fast feed(m/min) 12 12 18 18
XY axis chip feed(mm/min) 1-8000 1-8000 1-10000 1-10000
Positioning accuracy(mm) ±0.005 ±0.005 ±0.005 ±0.005
Repeatable positioning accuracy(mm) ±0.003 ±0.003 ±0.003 ±0.003
Width of goalpost(mm) 760 760 900 1100
Operating voltage(V) 380V/50Hz 380V/50Hz 380/50Hz 380V/50Hz
Numerical control systems Taiwan New Generation Taiwan New Generation Taiwan New Generation Taiwan New Generation
Machine weight approx.(kg) 3200 4000 6400 7500

Related products

Send Us a Message​

Ningbo GREAT Machine Tool Co., Ltd.

ABOUT

Ningbo GREAT Machine Tool Co., Ltd.


Our company is in the Baojia Industrial Park of Ningbo City, adjacent to the airport, highway, railway station, and bus station with very convenient transportation. We are China Engraving and Milling Machining Center manufacturers and custom Engraving and Milling Machining Center factory.Our products are suitable for producing auto accessories, textile Accessories, digital products, military products, medical instruments, mold manufacturing, aluminum casting, and so on. We import inspection equipment from Italy and Britain and conduct complete inspections for each machine, including machine tool geometry inspection, laser interference inspection, full tool test, spindle motor dynamic balance correction, etc. to ensure the high precise and stable quality of our products. In addition, we provide after-sales service. Our professional teams maintain close contact with customers and provide technical support at time if necessary. We adhere to the Diamond quality concept and keep working on it to provide products for each customer.

Professional

The sales team keeps in close contact with customers and provides technical support in time.

Quality & Cost

We have our own processing workshop. So we can provide favorable prices and high-quality products directly.

Contact us

Certificate Of Honor

News

Industry knowledge extension of this product

Precision Craftsmanship in Motion: Engraving and Milling Machining Center
When the pursuit of intricate details and flawless precision meets cutting-edge technology, the result is the Engraving and Milling Machining Center – a marvel of engineering that stands as a testament to the fusion of art and science. This remarkable machine is not just a tool; it's a symphony of craftsmanship, where every component, every design choice, contributes to a harmonious whole. With a body constructed from high-grade resin sand castings and meticulously aged to eliminate internal stresses, this center ensures a stable and unwavering performance, making it an indispensable asset in a range of industries.
The essence of the Engraving and Milling Machining Center lies in its attention to detail. Each element is carefully selected to ensure optimal performance and unwavering reliability. The machine's core is fortified with components from renowned manufacturers and imported brands, reinforcing its capability to deliver precision with consistency. From the Taiwan ball screws that orchestrate fluid motion to the linear guide rails that guide the path with unerring accuracy, every piece of the puzzle is in its place. Japanese servo motors infuse the machine with a level of control that is nothing short of exceptional. This meticulous curation of excellence culminates in a machine that not only meets industry standards but sets new benchmarks.
A Versatile Powerhouse: Catering to Diverse Industries and Materials
The Engraving and Milling Machining Center isn't confined by the limits of specialization; it's designed to be a versatile powerhouse that caters to an array of industries and materials. From the automotive industry to the home appliance sector, from intricate injection molds to durable hardware molds, this center seamlessly adapts to the needs of each domain. Its reach extends to the creation of car tires, lamp molds, copper (graphite) electrodes, shoe molds, pen molds, and even toy molds. The range of materials it handles is as diverse as its applications – from metals like copper, iron, steel, and aluminum to the precision of graphite, the transparency of organic glass, and the warmth of wood. This adaptability underlines its position as a versatile workhorse that can navigate the intricate landscapes of various industries with grace and precision.
Crafting the Future with the Engraving and Milling Machining Center
In a world where precision is not just an aspiration but a necessity, the Engraving and Milling Machining Center emerges as a beacon of uncompromising craftsmanship. The body's construction from high-grade resin sand castings, complemented by meticulous artificial aging, lays the foundation for a machine that is impervious to the pressures of internal stress and deformation. It stands as a testament to meticulous design and engineering, with every component curated from the arsenal of well-known manufacturers and imported brands. This precision, guided by Japanese servo motors, transforms the machining process into an art form, where accuracy and reliability dance in perfect harmony.
Beyond its technical prowess, the Engraving and Milling Machining Center exemplifies adaptability – a quality crucial in a world of diverse industries and materials. From the automotive sector to the realm of molds and beyond, its capabilities extend to shaping a myriad of materials, from metals to glass, wood, and more. This versatility encapsulates its role as a transformative force across industries.
In the grand tapestry of precision engineering, the Engraving and Milling Machining Center etches its own chapter. It's not just a machine; it's a symphony of precision, a masterpiece that combines design ingenuity, technological excellence, and versatility to craft the future of manufacturing. With each piece it shapes, each mold it refines, and each material it conquers, it affirms its place as a guardian of precision and an architect of innovation.
