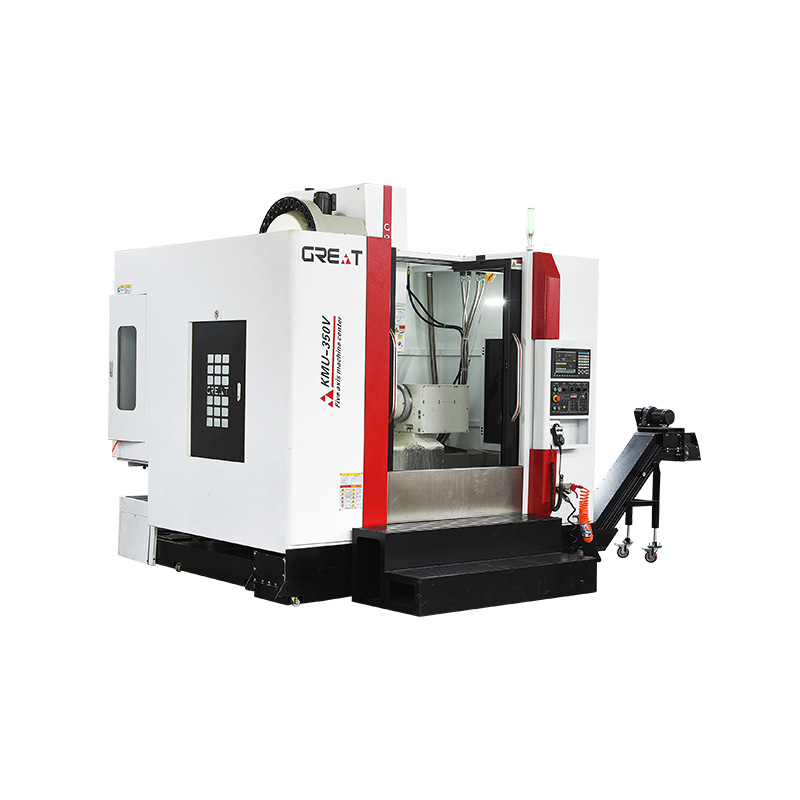

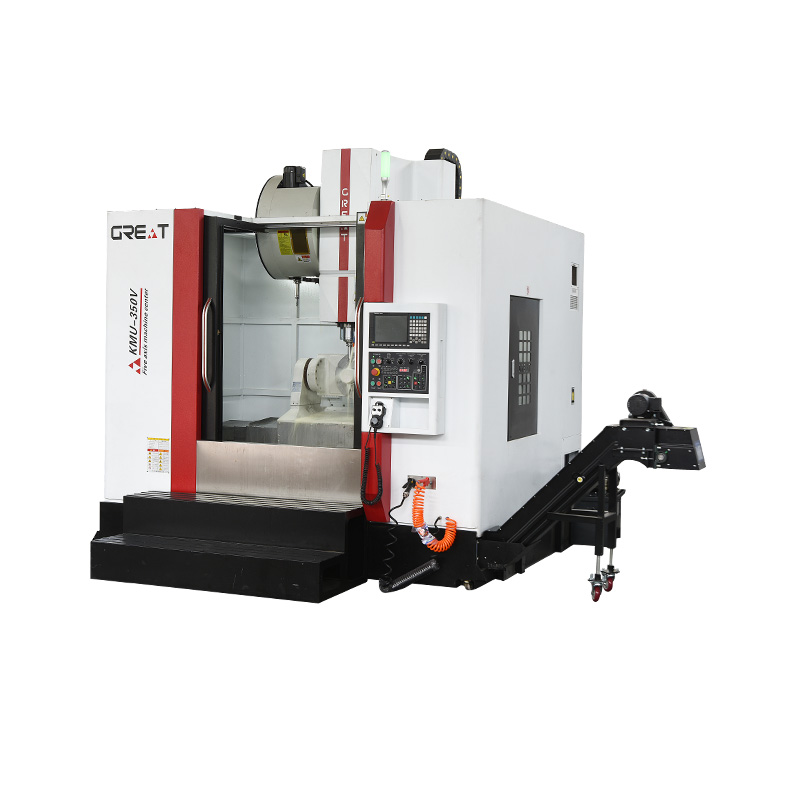

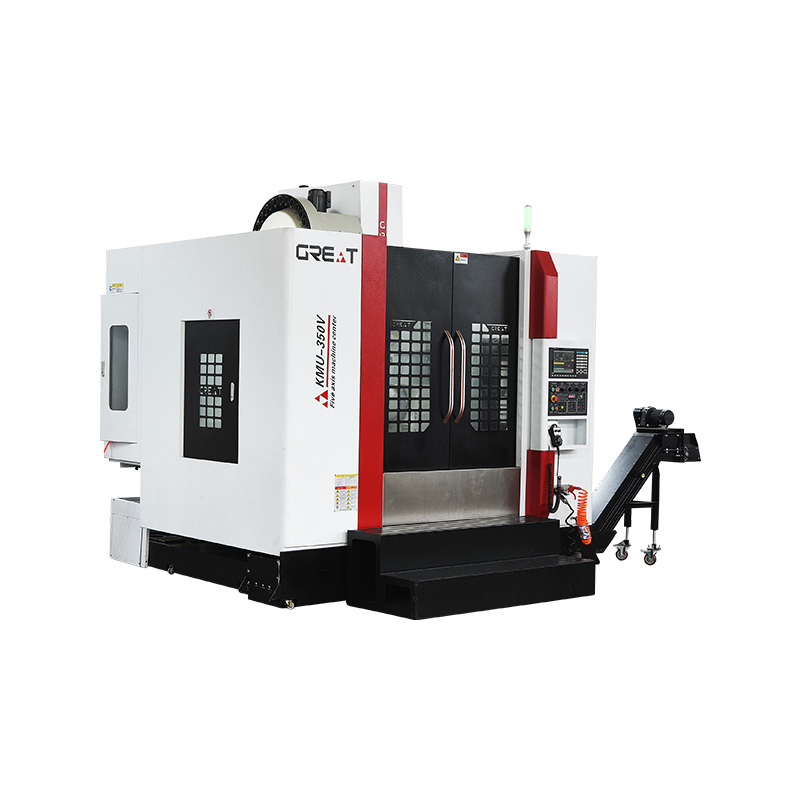

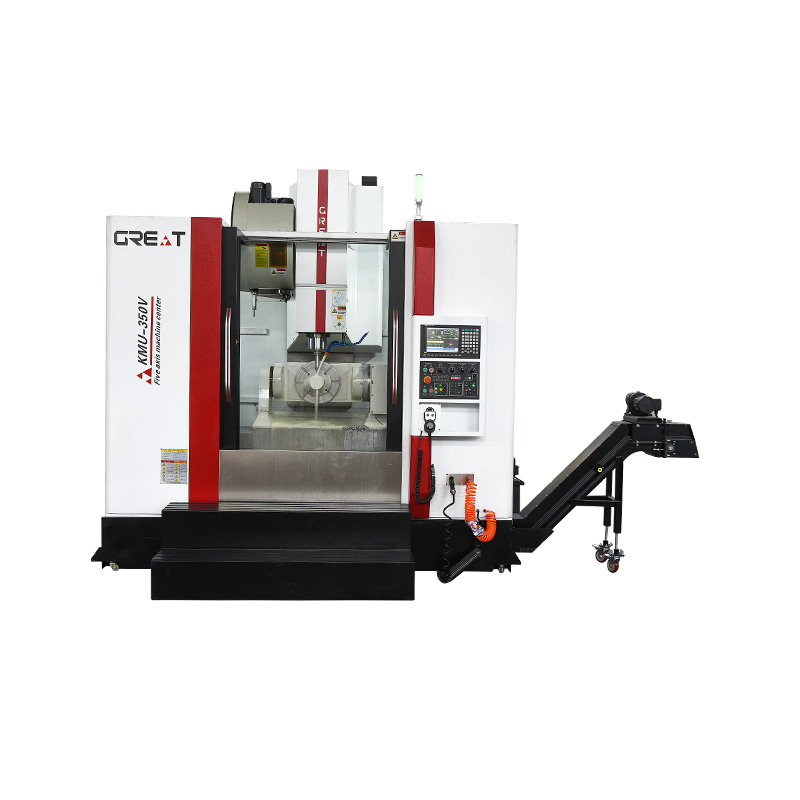

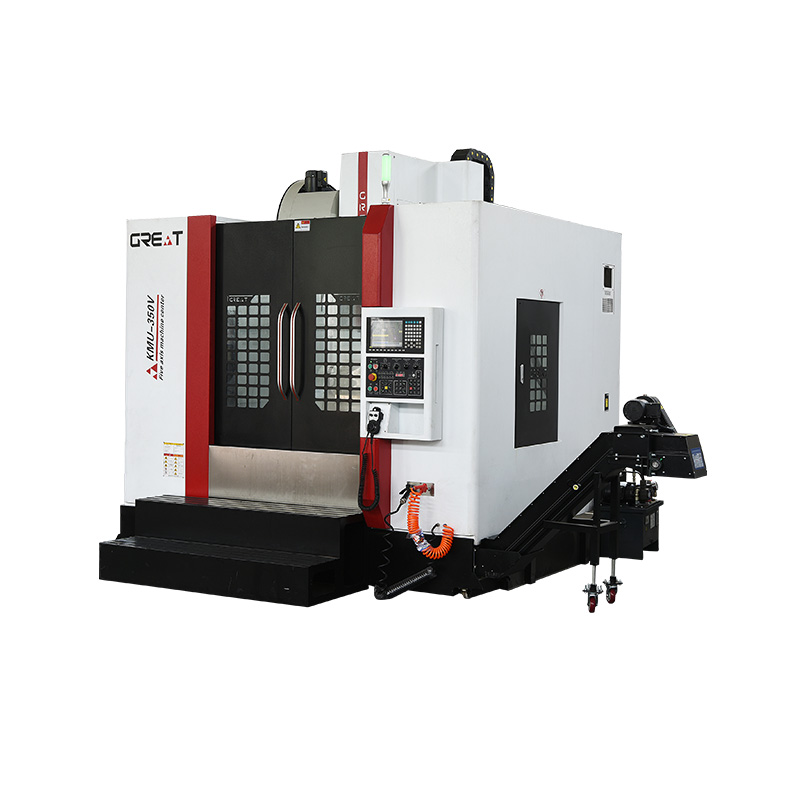

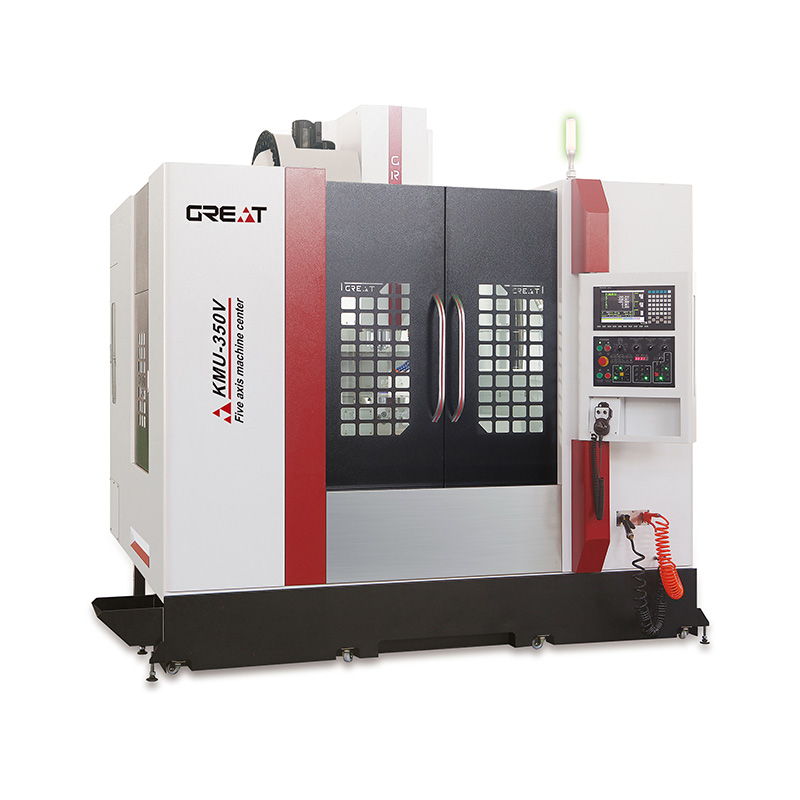

Five axis Machining Center

Five axis Machining Center

Machine Characteristics:

  • Five axis Machining Center
  • Five axis Machining Center
  • Five axis Machining Center
  • Five axis Machining Center
  • Five axis Machining Center
  • Five axis Machining Center
  • Five axis Machining Center
inquiry

Configuration

Standard configuration：
/New generation system  / 20,000 rpm electric spindle / Spindle blowing / Chip flushing device /Three axis telescopic guard /Fully enclosed shroud /Automatic lubrication system /Working light /Operating status indicator
/24 Tool arm type tool magazine /Z-axis pneumatic balancing system (KMU-500)  /Cooling systems /Air gun, water gun /Electronic hand wheel /Electric box heat exchanger
/Rigid tapping /Spindle oil temperature cooler /Transformer /Chain chip conveyor (not supplied with KMU-170) /Tool box and tools /Leveling screws and spacers /Operating and procedure manuals

Optional configurations：
/Mitsubishi, Siemens, Fanuc systems /Electric spindle  /30, 40 tool magazines /Chain chip conveyor  /XYZ axis optical scale  /A/C axis optical scale /Spindle centre water outlet /Electrical box air conditioning /Hollow screw /Automatic tool length measuring device /Automatic workpiece measuring device /Oil and water separators  /Micro-lubrication cooling units /Oil mist collection device /Spindle centre water outlet

Technical Parameters

Projects KMU-260D KMU-400D KMU-500D KMU-400V
Itinerary X-axis travel (table left/right movement)(mm) 600 500 500 800
Y-axis travel (table movement back and forth)(mm) 450 800 450 725
Z-axis travel (up and down movement of the main transfer case)(mm) 330 350 450 550
A-axis +120° -90°/120 +120° 120°
C-axis 360° 360° 360° 360°
Maximum spin diameter 400 500 600 650
Distance from the nose of the spindle to the table (horizontal)(mm) 100-430 150-500 150-600 100-650
Workbench Disc surface dimensions(mm) Φ260 Φ400 Φ500 Φ400
Table horizontal load(Kg) 50 250 350 250
Table tilt load(Kg) 35 200 300 200
T-slot dimensions(mm) 12×21 7-14×63 7-14×63 8-12×63
Main shaft Spindle drive type Direct link Electric spindles Electric spindles direct connection/electric spindle
Spindle speed(rpm/min) 20000 20000 18000 12000/24000
Spindle taper BT30 HSK/A63 HSK/A63 BT40/HSK A63
Spindle power(KW) 5.5 20 20 15/20
AC axis AC axis form(X/Y/Z) DD Direct Drive DD Direct Drive DD Direct Drive DD Direct Drive
A-axis maximum speed(rpm/min) 189 100 30 80
C-axis maximum speed(rpm/min) 386 200 120 100
AB axis positioning accuracy / repeatability(SEC) ±8/±5 ±6/±3 ±6/±3 ±5/4
C-axis positioning accuracy / repeatability(SEC) ±8/±5 ±6/±3 ±6/±3 ±5/4
A/B axis rated torque(Nm) 259/460 780 1290 1000
C-axis rated torque(N-m) 122/223 217 600 250
Other Air pressure requirements(kg/cm²) 6 6 6 6
Machine weight(kg) 4000 7000 7500 9000

Related products

Send Us a Message​

Ningbo GREAT Machine Tool Co., Ltd.

ABOUT

Ningbo GREAT Machine Tool Co., Ltd.


Our company is in the Baojia Industrial Park of Ningbo City, adjacent to the airport, highway, railway station, and bus station with very convenient transportation. We are China Five axis Machining Center manufacturers and custom Five axis Machining Center factory.Our products are suitable for producing auto accessories, textile Accessories, digital products, military products, medical instruments, mold manufacturing, aluminum casting, and so on. We import inspection equipment from Italy and Britain and conduct complete inspections for each machine, including machine tool geometry inspection, laser interference inspection, full tool test, spindle motor dynamic balance correction, etc. to ensure the high precise and stable quality of our products. In addition, we provide after-sales service. Our professional teams maintain close contact with customers and provide technical support at time if necessary. We adhere to the Diamond quality concept and keep working on it to provide products for each customer.

Professional

The sales team keeps in close contact with customers and provides technical support in time.

Quality & Cost

We have our own processing workshop. So we can provide favorable prices and high-quality products directly.

Contact us

Certificate Of Honor

News

Industry knowledge extension of this product

Precision and Efficiency Redefined: The Five-Axis Machining Center with New Generation Features
In the ever-evolving landscape of manufacturing technology, the emergence of the Five-Axis Machining Center marks a pivotal advancement in precision engineering. This cutting-edge machine integrates a host of innovative features, heralding a new era in machining capabilities. With a focus on speed, accuracy, and versatility, this system is poised to revolutionize the realm of high-precision machining.
At the heart of this machining center lies a new generation system that stands as a testament to technological prowess. Engineered to orchestrate complex machining tasks with finesse, this system brings unparalleled accuracy and repeatability to the forefront. Complementing this is the 20,000 rpm electric spindle, an engineering marvel that propels machining into a new realm of efficiency. The whisper-quiet yet robust spindle not only accelerates operations but also enhances surface finish quality, catering to the most demanding machining requirements.
Empowering Precision: Advanced Cooling and Lubrication Systems
Equipped with a spindle oil temperature cooler, this machining center ensures that thermal stability remains uncompromised even during prolonged machining operations. Heat dissipation becomes an art form, enabling the system to maintain optimal performance without missing a beat. Augmenting this temperature control is the automatic lubrication system, guaranteeing the longevity of critical components while minimizing maintenance demands.
Mastering Every Dimension: Five-Axis Proficiency and Telescopic Guard
True machining excellence lies in the art of multi-dimensional operations. With its five-axis capabilities, this machining center breaks the boundaries of traditional three-axis machining. The triad of accuracy, flexibility, and efficiency becomes more evident as the machine maneuvers through intricate geometries effortlessly. Complementing this prowess is the three-axis telescopic guard, enhancing operator safety without obstructing the view of the machining process. A fully enclosed shroud further fortifies safety measures, fostering a secure operating environment.
Elevating Efficiency: Tool Management and Pneumatic Balancing
Streamlining operations is the hallmark of this machining center's design, epitomized by the 24-tool arm-type tool magazine. This intelligent tool management system eliminates downtime associated with tool changes, ensuring continuous machining flow. The Z-axis pneumatic balancing system (KMU-500) optimizes load distribution, contributing to enhanced precision and surface finish quality across diverse workpieces.
Acknowledging the diverse demands of modern manufacturing, this machining center embraces customization like never before. The option to integrate Mitsubishi, Siemens, or Fanuc systems empowers manufacturers to align their machining setup with their preferred control systems. The availability of electric spindles and variable tool magazines of 30 or 40 tools expands the repertoire of machining possibilities.
Pioneering Sustainability: Environmentally-Conscious Features
Beyond performance, this machining center addresses sustainability through its oil and water separators, micro-lubrication cooling units, and oil mist collection device. By minimizing waste and reducing environmental impact, manufacturers can uphold their commitment to responsible production practices without compromising on precision.
The Five-Axis Machining Center with its new generation system, electric spindle, advanced cooling, and lubrication systems, coupled with innovative safety features and optional configurations, marks a significant leap forward in precision machining. This versatile powerhouse stands as a testament to the marriage of engineering excellence and operational ingenuity, offering manufacturers a competitive edge in a dynamic industry. Whether shaping intricate prototypes or executing large-scale production runs, this machining center redefines the standards of precision, efficiency, and customization, propelling industries towards a future of limitless possibilities.
